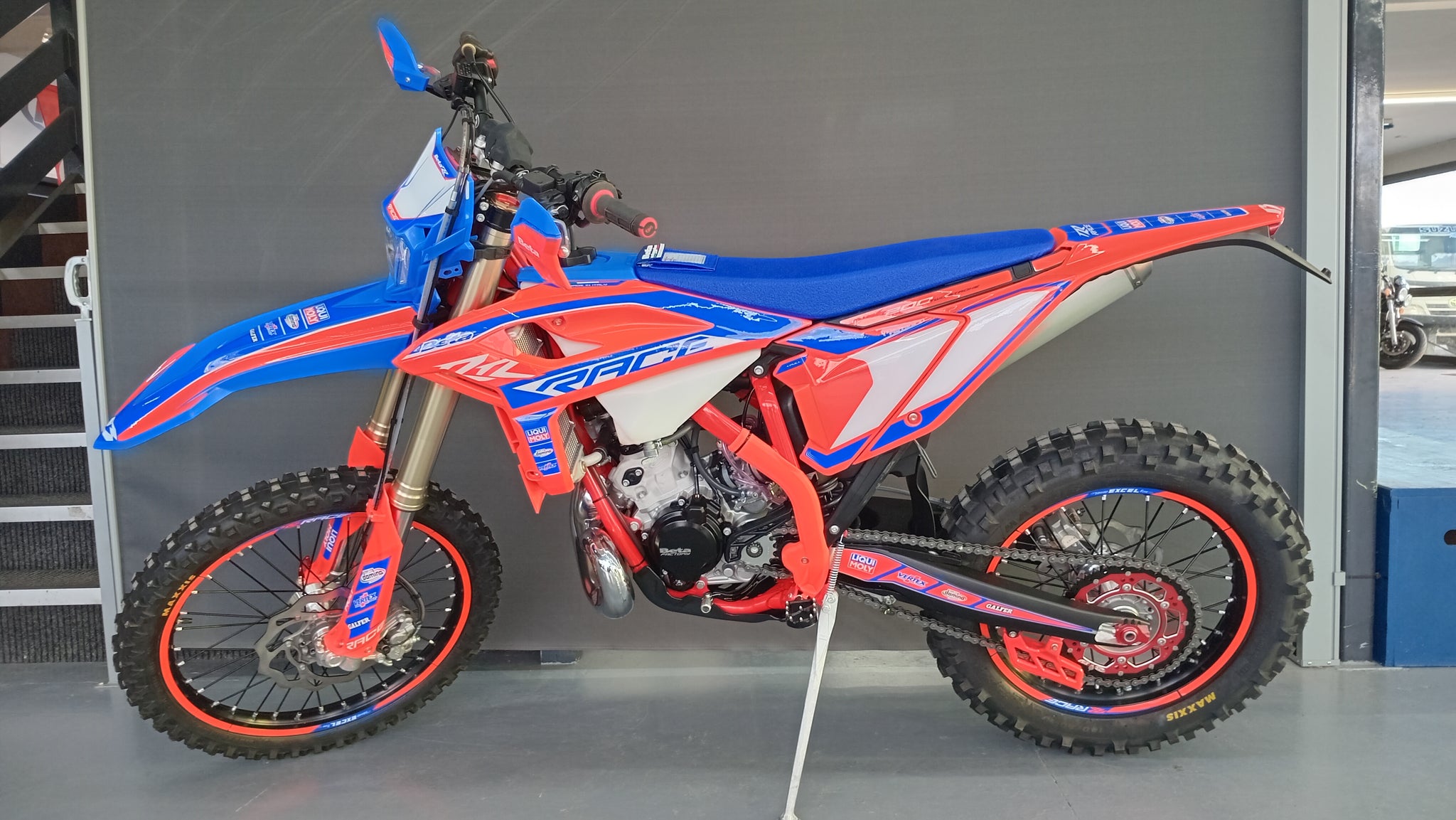

Beta RR 200 2T RACING
Bike Force, your local Beta Motorcycles Dealership

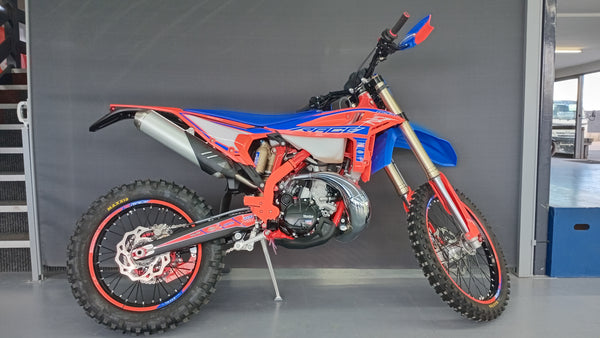

Beta RR 200 2T RACING

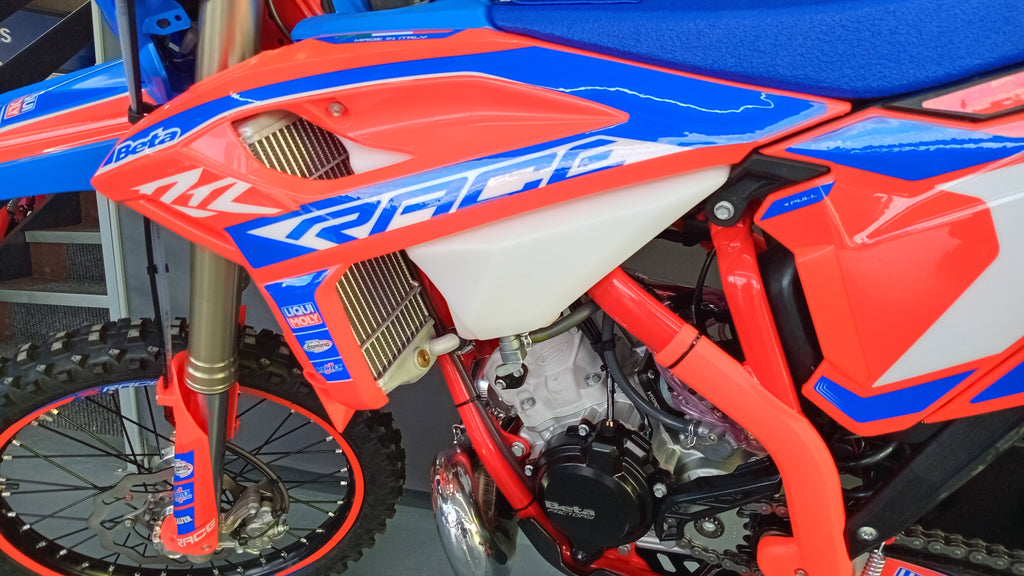

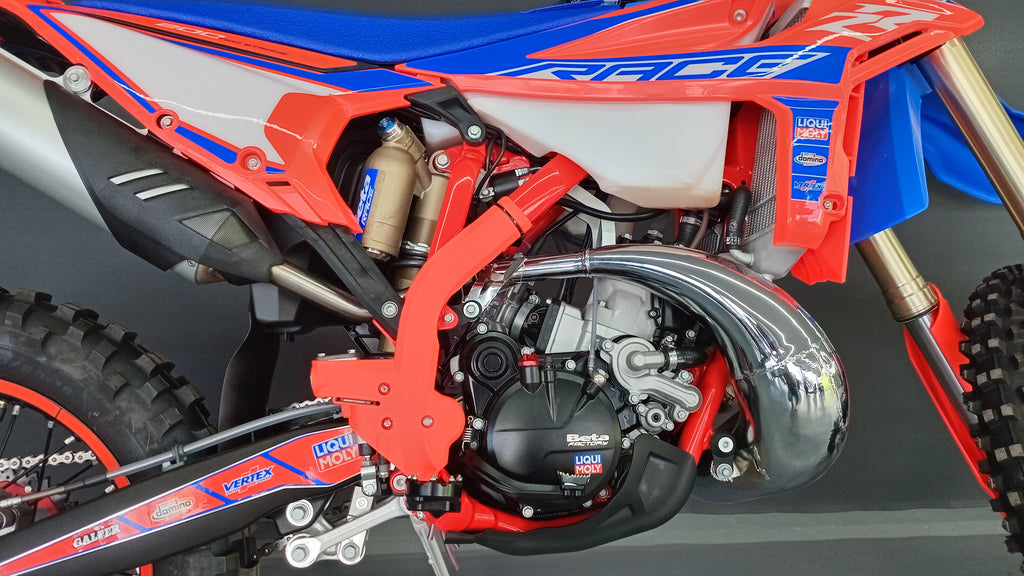

ENGINE
TYPE BETA-BUILT SINGLE CYLINDER, 2-STROKE, LIQUID COOLED
BORE 62 MM
STROKE 63 MM
TOTAL DISPLACEMENT 190.2 CC
COMPRESSION RATIO 13.5: 1
EXHAUST VALVE BETA PROGRESSIVE VALVE (BPV)
IGNITION AC-CDI KOKUSAN
SPARK PLUG NGK BR8ECM
LUBRICATION MIXING
CARBURETOR KEIHIN PWK 36MM
CLUTCH WET MULTI-DISC WITH REVERSE OPENING
TRANSMISSION 6-SPEED

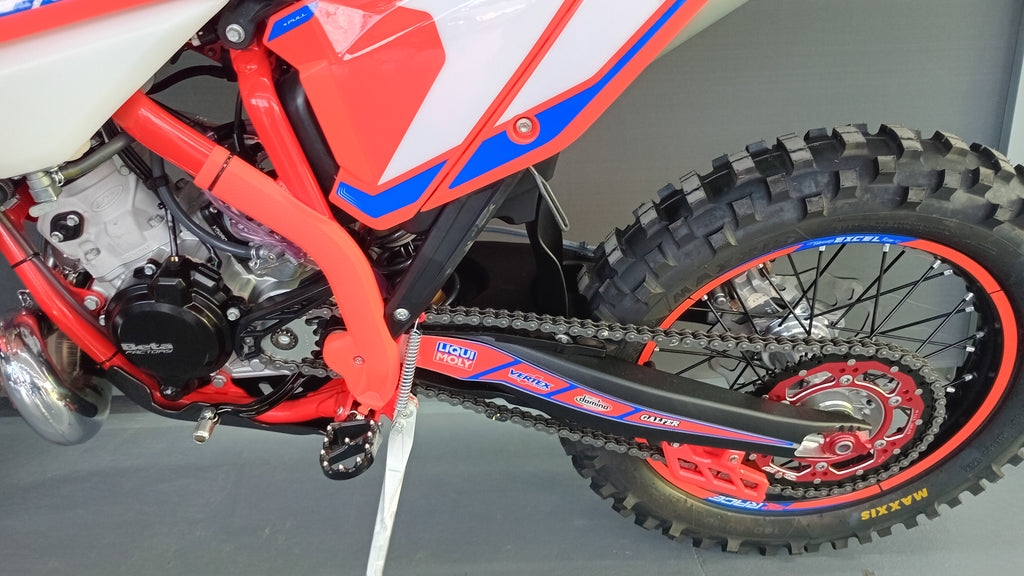

FINAL DRIVE O-RING CHAIN
CHASSIS
FRAME MOLYBDENUM STEEL/DOUBLE CRADLE W/QUICK AIR FILTER ACCESS.
WHEELBASE 1477 MM
SEAT HEIGHT 930 MM
GROUND CLEARANCE 325 MM
FOOTREST HEIGHT 410 MM

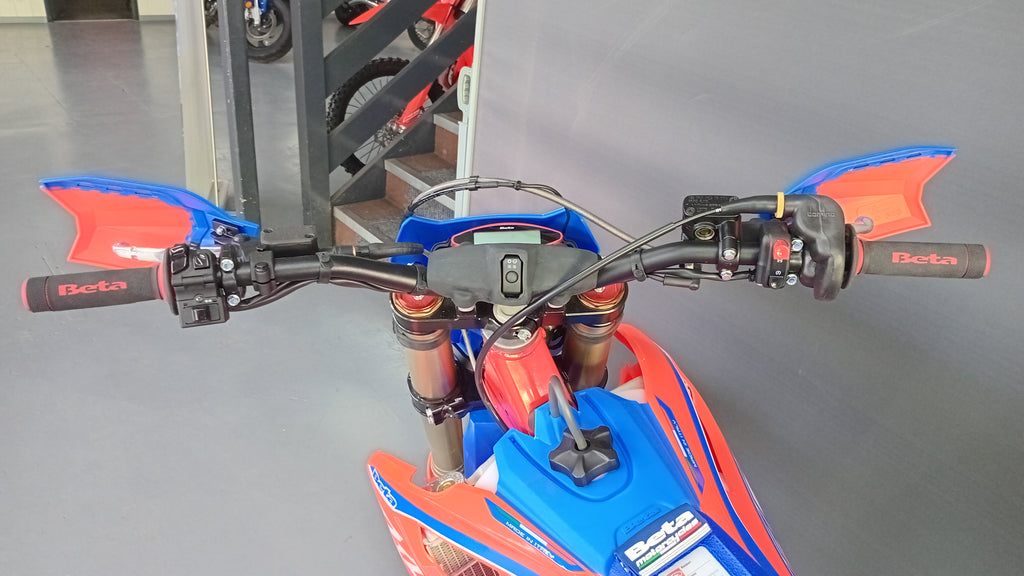

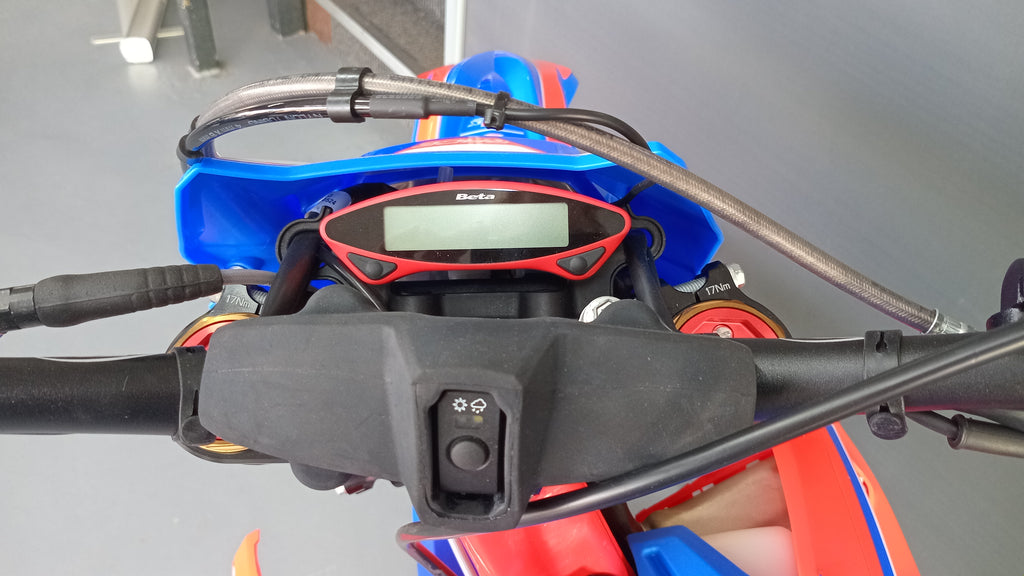

ELECTRICAL MULTI-FUNCTION METER
DRY WEIGHT 97kg
FUEL TANK CAPACITY 9.5 L

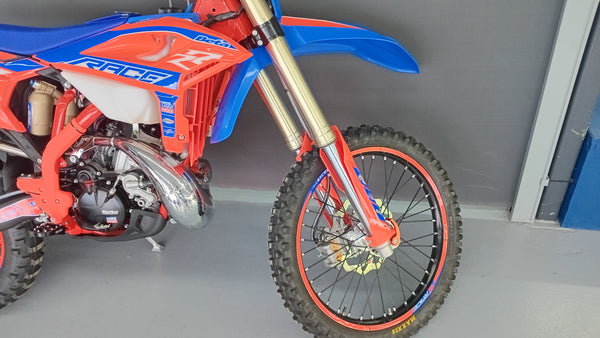

FRONT SUSPENSION HYDRAULIC USD FORK WITH 48 MM SHAFT

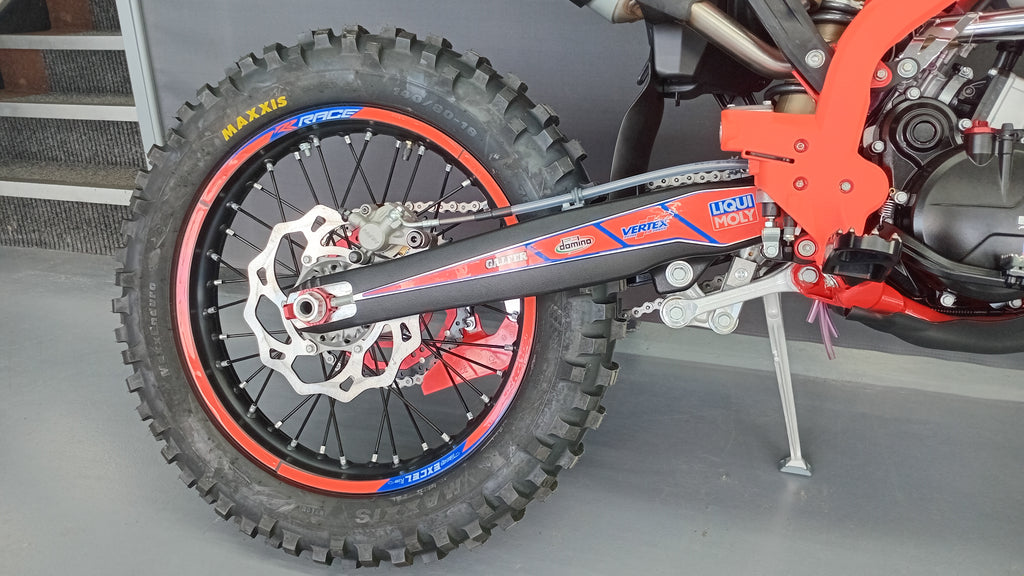

REAR SUSPENSION MONOSHOCK WITH PROGRESSIVE COMPOUND LEVER
FRONT WHEEL TRAVEL 295 MM
REAR WHEEL TRAVEL 290 MM
FRONT BRAKE WAVE DISC 260MM AND DOUBLE-PISTON FLOATING CALIPER
REAR BRAKE WAVE DISC 240MM AND SINGLE-PISTON FLOATING CALIPER
FRONT/REAR RIM 21” (FRONT) 18” (REAR)
FRONT/REAR TIRE METZELER SIX DAYS OFF-ROAD TIRES
